According to the production features of the different steel manufacturing enterprises, GAOAKE & Dahua had developed “Dry method” and “Wet Method” comprehensive recycle equipment respectively. The production capacity could be 300,000 tons - 2,000,000 tons per year.

Production Capacity: 60-1000t/h

Production Line
The Major Equipment of Steel Slag Comprehensive Recycle Production Line:

Steel Slag Comprehensive Recycle Production Line is mainly composed of jaw crusher, cone crusher, rod mill, ZM auto genous grinder and so on.

The process feature of Steel Slag Comprehensive Recycle Production Line:

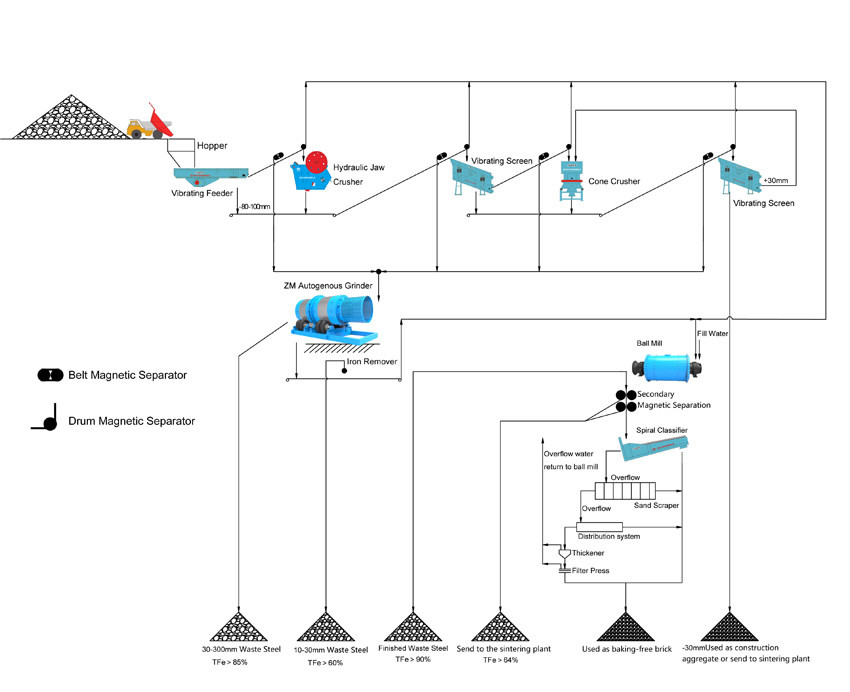

This magnetic steel slag washing, ball milling, magnetic separation, purifying comprehensive recycle equipment not only realizes the water recycle, but also improves the grade of steel slag (TFe>90%），the steel slag grade is 55%.

The steel slag goes through ball press machine and returns to sintering plant and used as the substitute of partial limestone. The moisture content of the tailing is quite low so that the slag could be piled up and used for baking-free bricks or road water permeable bricks.

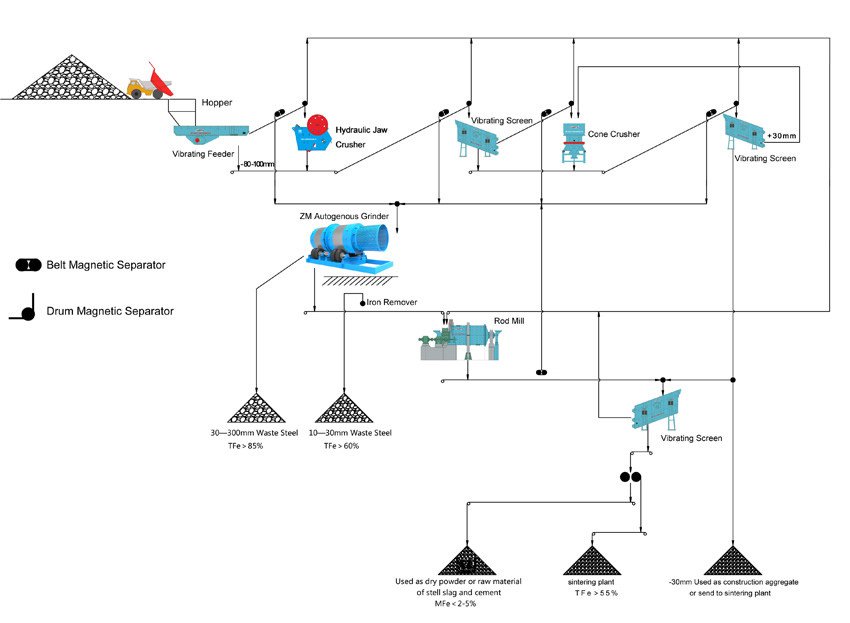

Dry Method steel slag recycling process doesn’t need to consume valuable water resource. After crushing, roller milling and magnetic separation process, the steel slag turns into two grades of steel scraps, which contains 55% Fe through autogenously grinding. The iron content of -5～10mm tailing steel slag is below 2%. Through sedimentation treatment, the slag could be used as dry slag mortar or used for cement making, steel slag micro powder.
