Product introduction
Circular screen is a kind of multi-deck and high-efficiency new vibrating screen. Circular vibrating screens are widely used in the screening of dry materials in the mining, building materials, transportation, energy, and chemical industries.
Technical features and advantages
Circular vibrating screen uses side-vibration eccentric block exciter.

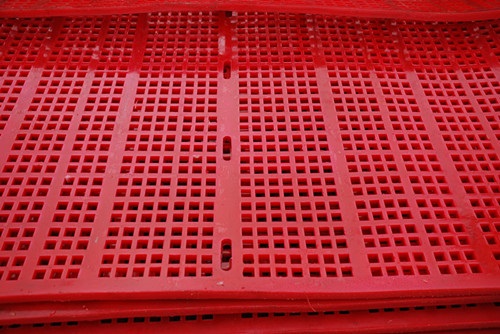

Screen structure is various, including bar screens, polyurethane square holes and polyurethane weaving, manganese steel wire weaving.
The maintenance of the equipment is simple and convenient, and the operating efficiency of the whole machine is obviously improved.
Flexible joints such as cross-axis universal shafts or rubber couplings ensure smooth operation.
Screening machine has higher screening efficiency, greater processing capacity, longer service life and longer machine service life
Technical Parameter
|
Model
|
Material size（mm）
|
Capacity t/h
|
Amplitude mm
|
Motor
|
Single
point static loadN
|
Max dynamic Load N
|
Outline（mm）
|
|
|
Model
|
Power Kw
|
|||||||
|
TLYZS-1236
|
＜200
|
70-250
|
9-11
|
Y160M-6
|
7.5
|
±802
|
±4008
|
3757×2364×2465
|
|
TLYZS2-1236
|
＜200
|
70-250
|
Y160M-6
|
7.5
|
±802
|
±4008
|
3757×2364×2456
|
|
|
TLYZS-1536
|
＜400
|
200-650
|
9-11
|
Y160L-6
|
11
|
±931
|
±4665
|
3757×2670×2437
|
|
TLYZS2-1536
|
＜400
|
200-650
|
Y180L-6
|
15
|
±931
|
±4665
|
3757×2715×2437
|
|
|
TLYZS-1836
|
＜400
|
250-750
|
9-11
|
Y160L-6
|
11
|
±980
|
±4900
|
3757×2975×2437
|
|
TLYZS2-1836
|
＜400
|
250-750
|
Y180L-6
|
15
|
±980
|
±4900
|
3757×3020×2437
|
|
|
TLYZS-1842
|
＜400
|
300-850
|
9-11
|
Y180L-6
|
15
|
±928
|
±4640
|
4331×3020×2700
|
|
TLYZS2-1842
|
＜400
|
300-850
|
Y180L-6
|
15
|
±928
|
±4640
|
4331×3020×2700
|
|
|
TLYZS-1848
|
＜400
|
400-950
|
Y180L-6
|
15
|
±1392
|
±6958
|
4904×3020×2943
|
|
|
TLYZS2-1848
|
＜400
|
400-950
|
Y180L-6
|
15
|
±1392
|
±6958
|
4904×3020×2943
|
|
|
TLYZS-2148
|
＜400
|
450-1150
|
9-11
|
Y200L1-6
|
18．5
|
±2889
|
±14445
|
4945×3423×3501
|
|
TLYZS2-2148
|
＜400
|
450-1150
|
Y200L2-6
|
22
|
±2889
|
±14445
|
4945×3463×3501
|
|
|
TLYZS-2160
|
＜400
|
550-1350
|
9-11
|
Y225M-6
|
30
|
±2889
|
±14445
|
6116×3619×3849
|
|
TLYZS2-2160
|
＜400
|
550-1350
|
Y225M-6
|
30
|
±2889
|
±14445
|
6116×3619×3849
|
|
|
TLYZS-2460
|
＜400
|
600-1400
|
9-11
|
Y225M-6
|
30
|
±2889
|
±14445
|
6091×3925×3846
|
|
TLYZS2-2460
|
＜400
|
600-1400
|
Y225M-6
|
30
|
±2889
|
±14445
|
6091×3925×3846
|
|
