Linear Screen

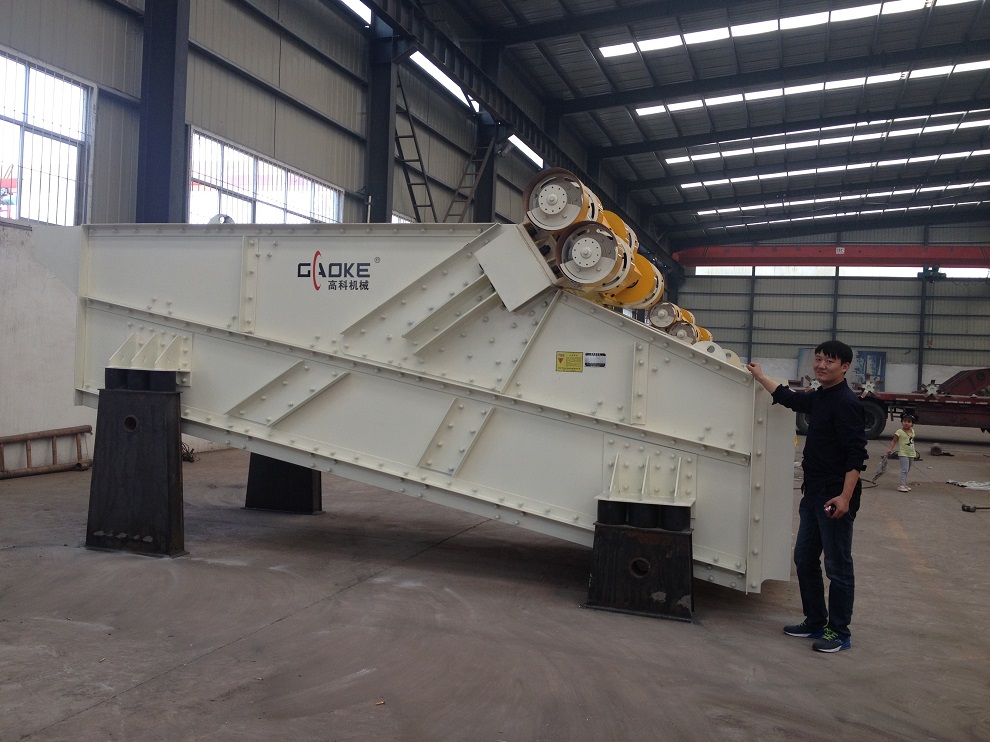

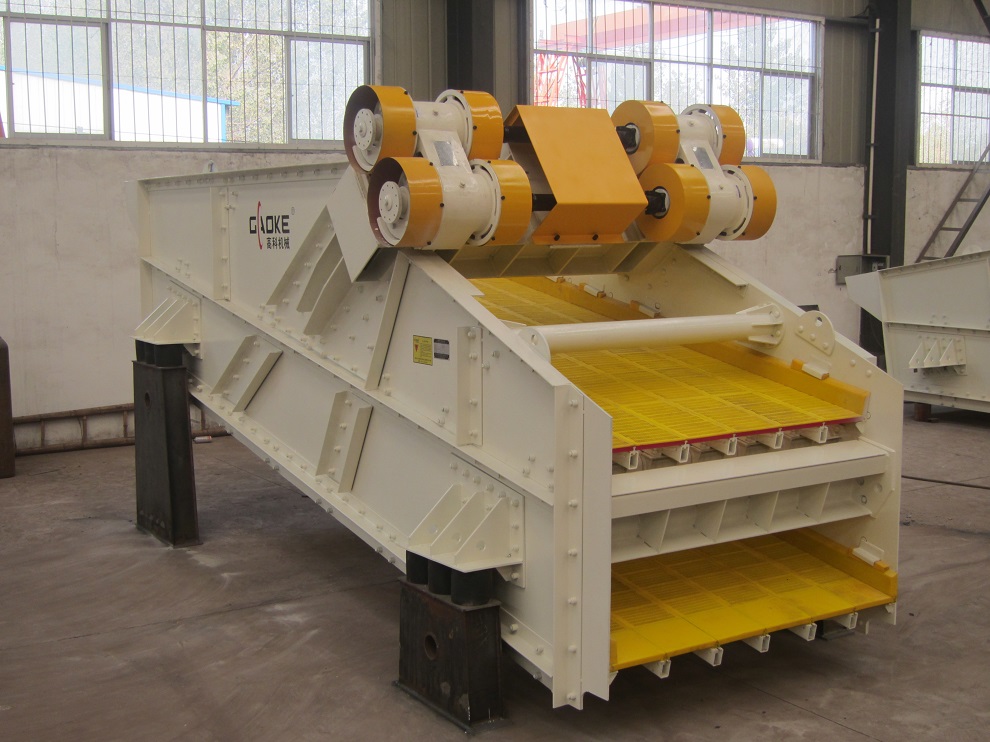

The linear screen is a type of vibrating screen which is based on our company's patented product- the GK-exciter, as the vibration source. It is mainly used for the grading operation of cold materials with temperatures below 150°C . The series screens can be installed on the left or right side according to the conditions of the work site.
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
Product introduction
The linear screen is a type of vibrating screen which is based on our company's patented product- the GK-exciter, as the vibration source. It is mainly used for the grading operation of cold materials with temperatures below 150°C . The series screens can be installed on the left or right side according to the conditions of the work site.
Technical features and advantages
* Screen body side plates are made of high-quality steel plates. Beams and screen box side plates are made of boiler plates and riveted with ring groove rivets.
* The mat is made of wear-resistant alloy steel or stainless steel sieve plate,or polyurthene mat, or hardfacing mat.

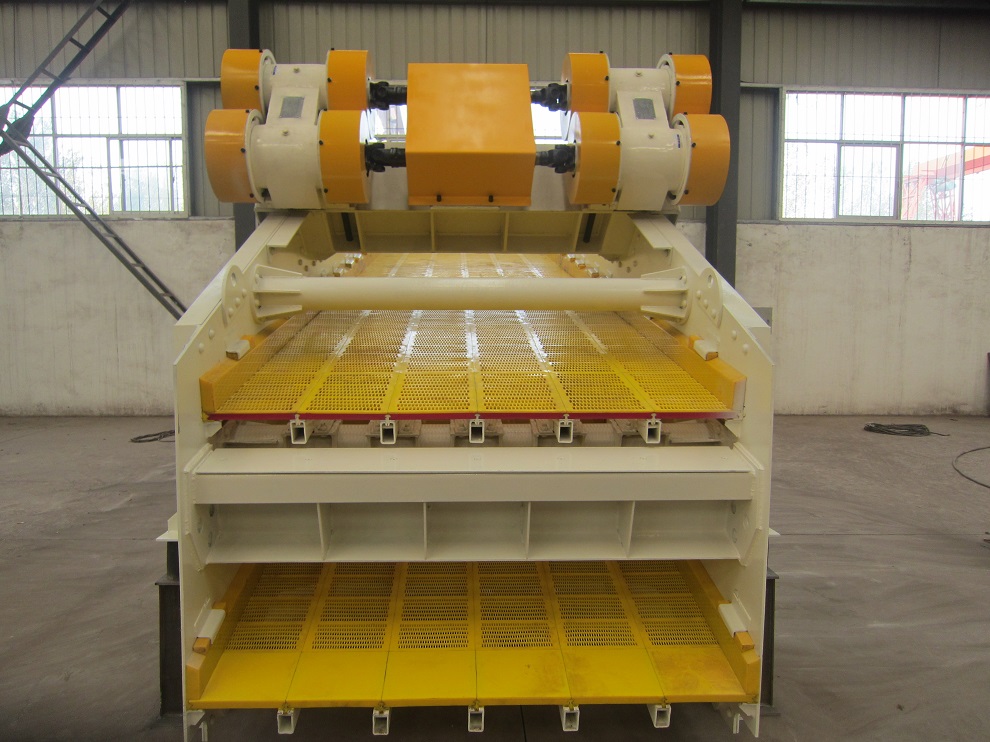

* According to the number of deck can be designed as a double or single deck.
* Vibration exciter adopts seat exciter or side flange type exciter. Grease lubrication or oil lubrication is used in the exciter.
* The whole machine has the characteristics of large processing volume, low noise, convenient screen replacement and simple maintenance.
* The motor does not oscillate, which can effectively prolong the service life of the motor.
* Tailor-made for all applications
Industry
* it is mainly used in the material classification of mining, metallurgy, coal, thermal power, fire-resistant, building materials, power, chemical and other industries.
Data
nominal length up to 10000 mm
nominal width up to 4000 mm (single deck screen)
nominal width up to 4000 mm (double deck screen)
nominal width up to 3300 mm (triple deck screen)
multiple deck variant available in special design
deck inclination 0-15° declining
acceleration of machine up to 6g
driven by GK-exciter drive (seven sizes available) or by unbalanced motors
